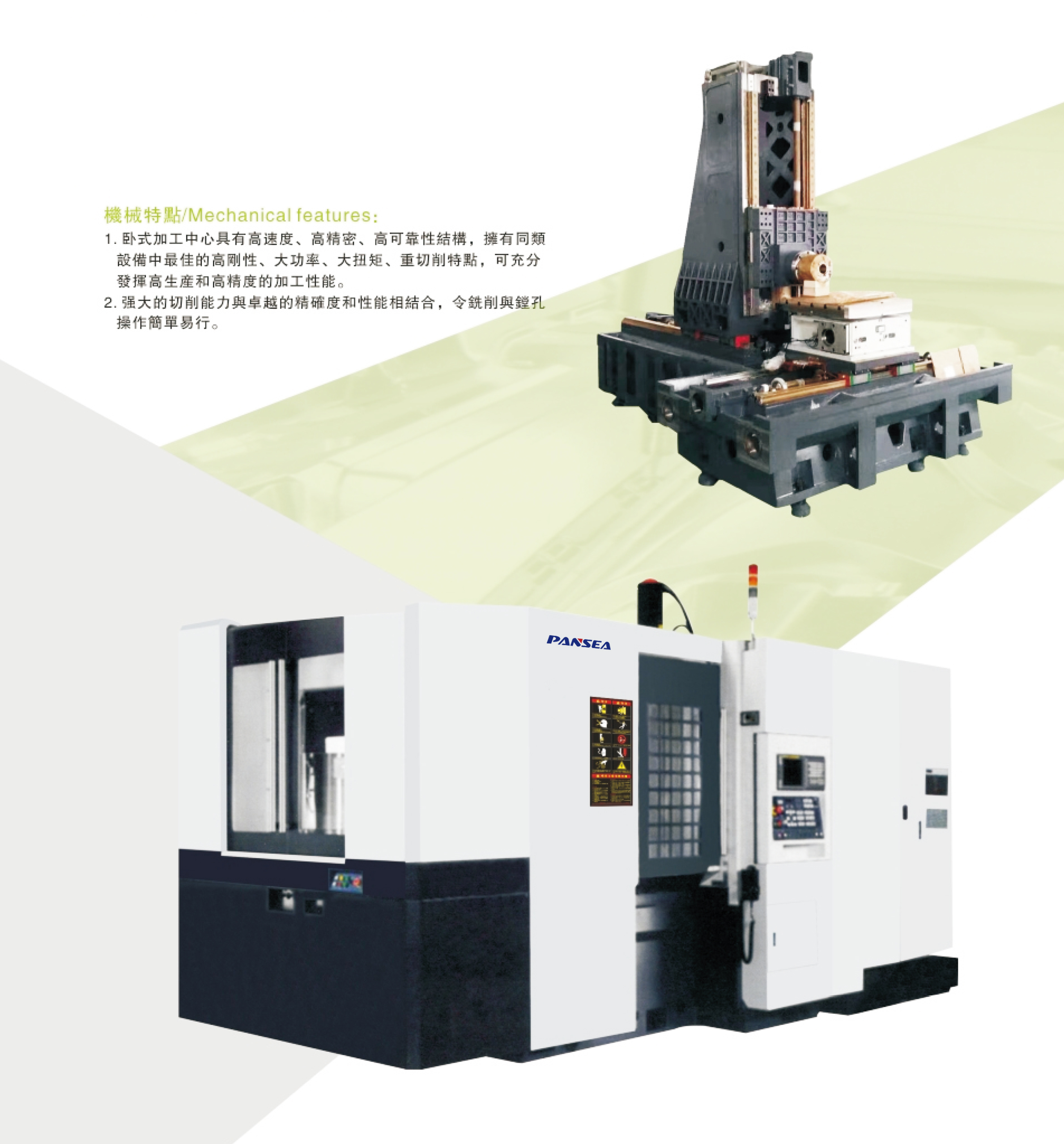

1. The structure of the whole machine adopts fixed column and cross sliding table structure. The fuselage adopts a super large stable base, high rigidity and large span herringbone column, high-speed cutting without vibration or deformation.

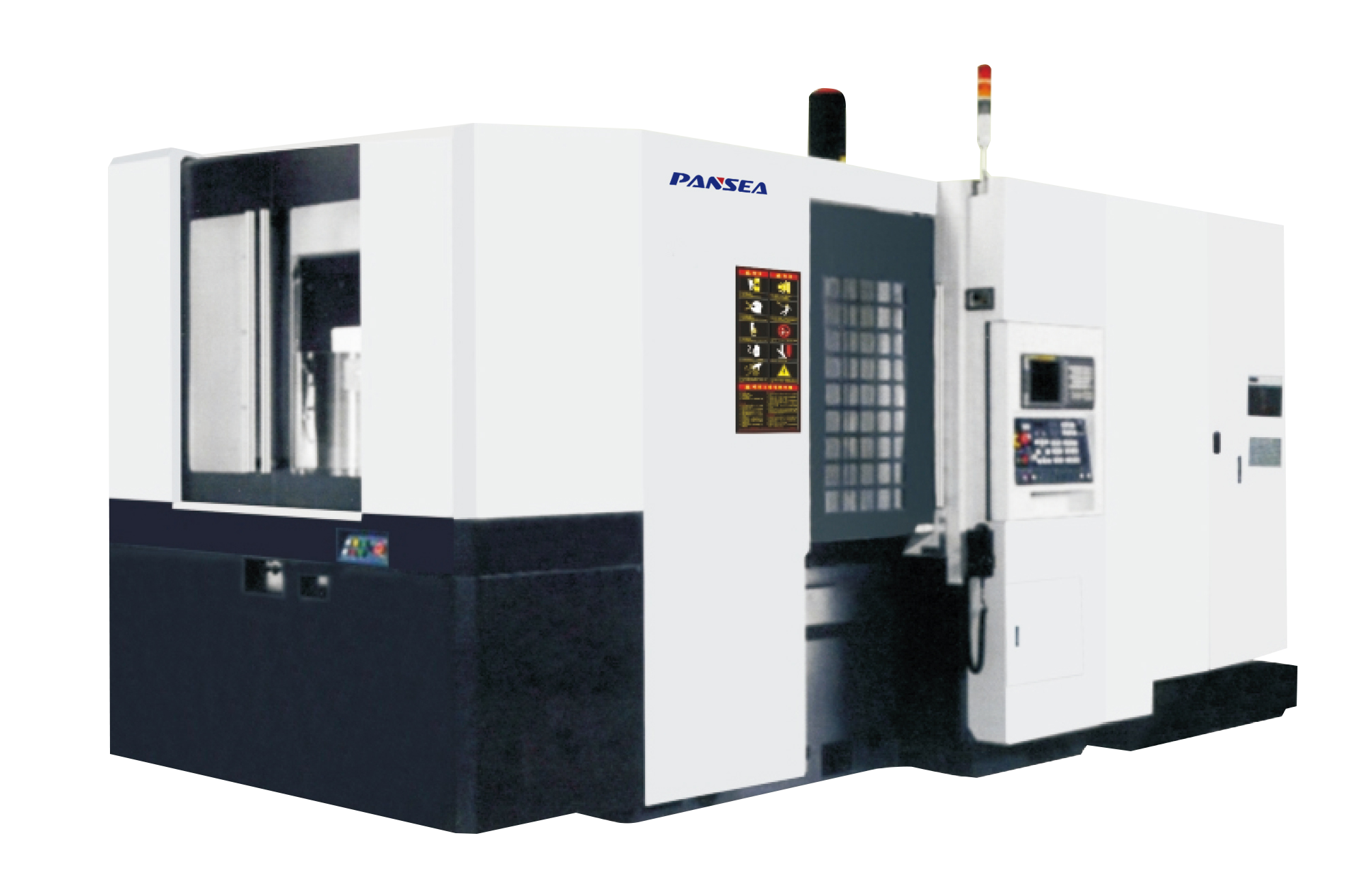

2. The whole machine is fully enclosed and protected, the machine is beautiful in appearance, easy to operate and maintain.

3. The large basic parts are all cast with high-quality resin sand modeling and high-strength cast iron materials, which enables the machine tool to obtain high rigidity and stable precision.

4. The three-axis guide rail adopts No. 45 large linear rail to carry, high rigidity, low friction and low noise.

5. Large diameter C3 grade screw rod with pre-tensioned structure to eliminate part of the thermal extension. The screw rod bearing adopts self-lubricating to extend the life of the bearing.

6. The tool magazine adopts a group of 24 tool arm type tool magazines with reliable quality and stable performance.

7. The spindle adopts Taiwan's high-speed spindle unit, the spindle adopts BT40-12000r/min direct coupling head, the front end of the spindle adopts a labyrinth design, and the spindle has an air curtain protection function to prevent cutting fluid from entering the spindle bearing.

8. Equipped with volumetric and forced lubricating oil system to ensure good lubrication of all moving parts of the machine tool.

9. Machine tool chip removal comes standard with sloped rear rows on both sides, rear water tank design, user-friendly and efficient highhigh10. Equipped with high-performance FANUC CNC system to ensure the stability of machine tool control, as well as the CNC machining functions and auxiliary functions required by users.
